Click here for instructions on updating your 578 for the BT01
Adding Mic Hanger Button
to the
Bluetooth Handmic BT01
AnyTone D578UV
At Your Own Risk

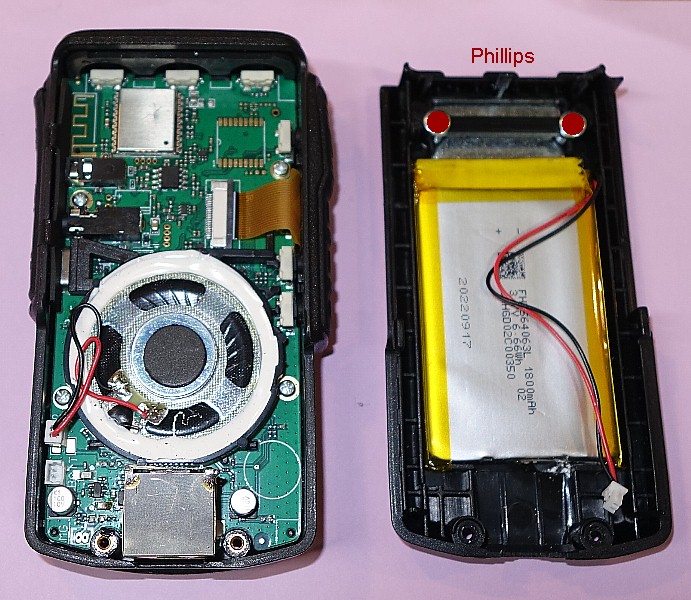

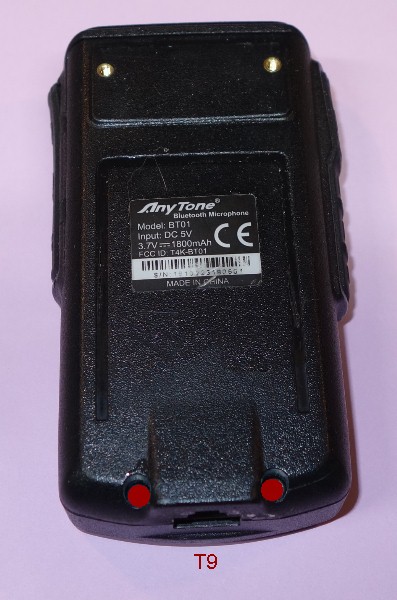

Remove the back from the BT-01, the battery will unplug from the front half.

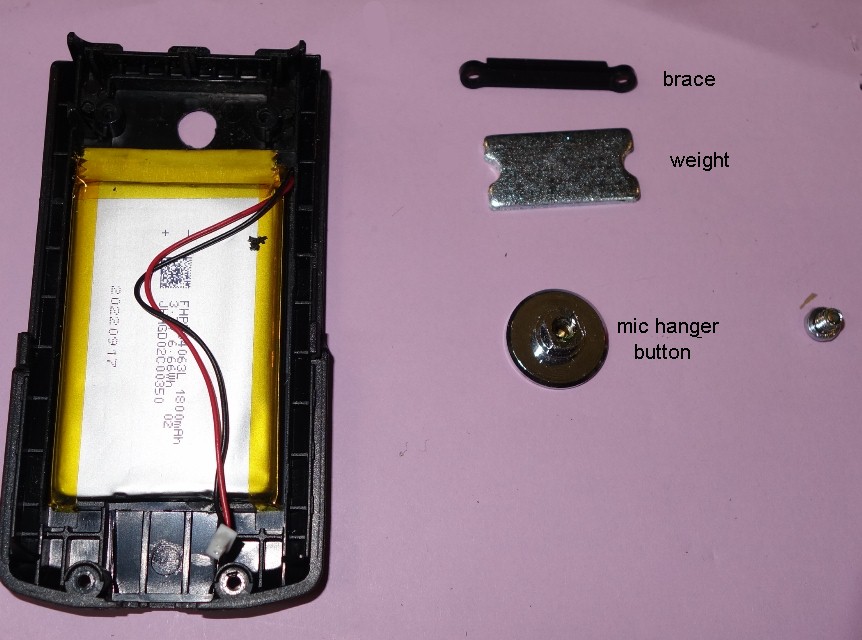

remove weight and cross-brace
Drill hole for mic button above battery

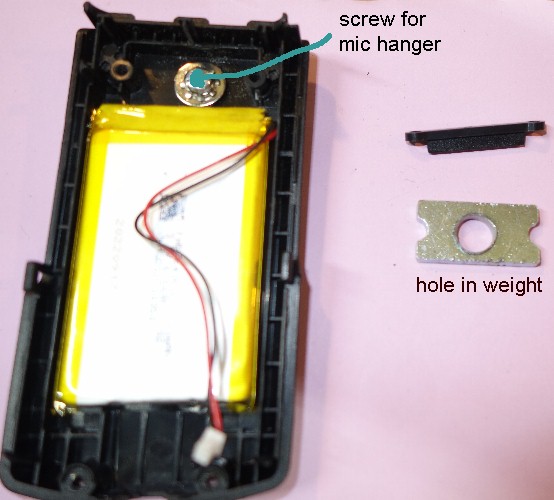

install mic hanger, drill hole in weight to fit over mic hanger screw; place weight and cross brace to their original positions.
Note: you might need to trim the height of the brace if needed.

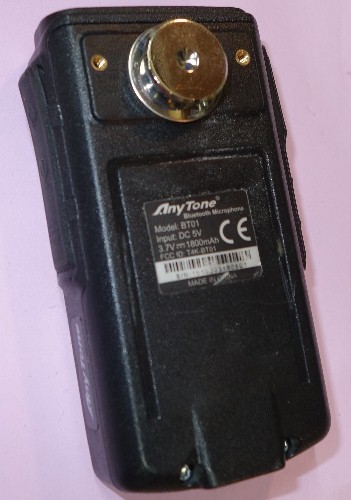

finished
