Timz Corepeater MeshCore Repeater
SA Scans

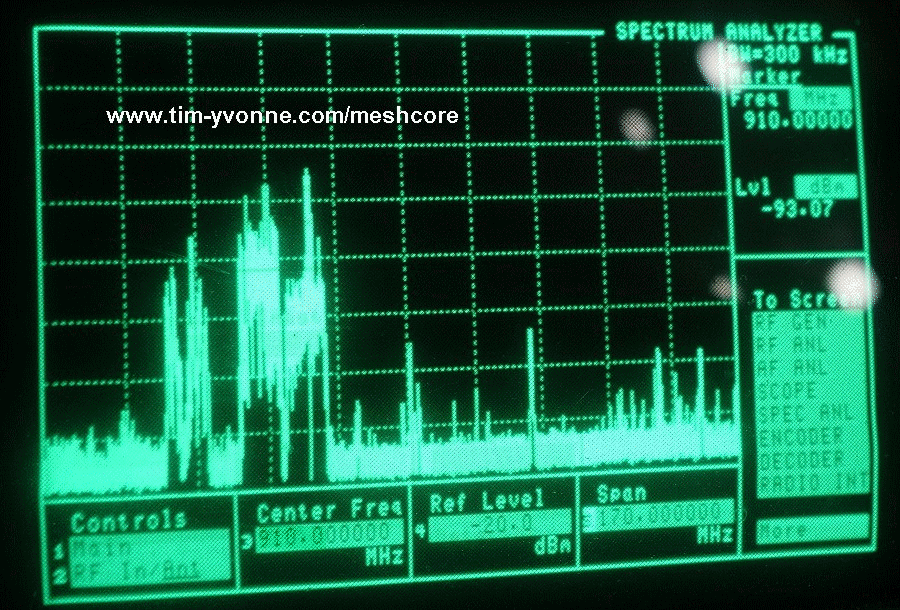

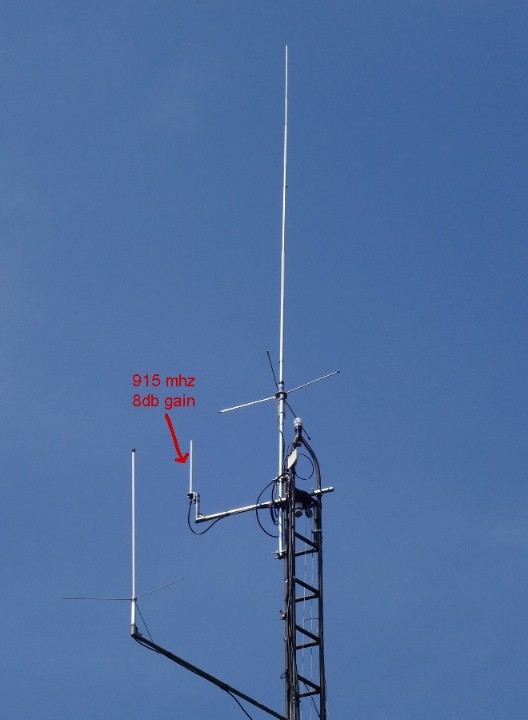

these scans are from a 915 mhz 8db antenna mounted 70' on the top of my tower, using LMR-600 coax. Note: my Corepeater (which is now located on the ground in my shack) was powered down and disconnected from the antenna during this testing. The spectrum analyzer was the only device connected to the antenna coax:
Meshcore is from 902 to 928 mhz.
that "forest" of signals between 851 and 890 is due to a cell tower that's 1200' from my location.

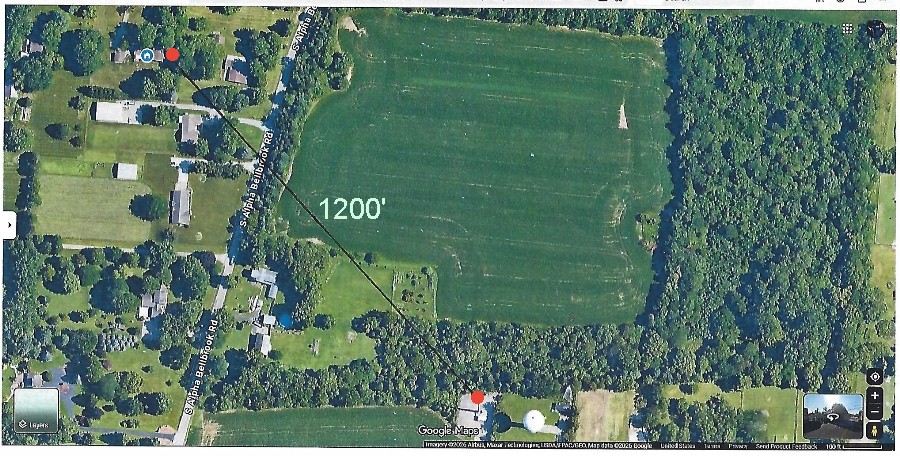

click HERE for an overhead view.
This was remedied by installing an inline bandpass filter.
