Timz Sectoral Array Info Page

 Return to Main Mesh Page

Covering 240 degrees

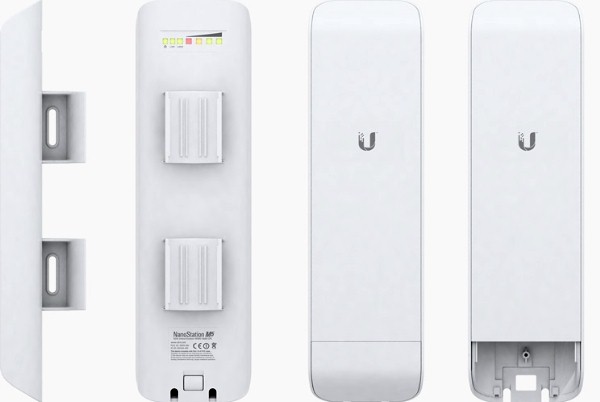

Equipment used: Four Ubiquiti NanoStation 5.8ghz

These are 60 degree directional horiz, and 30 degrees vertical :

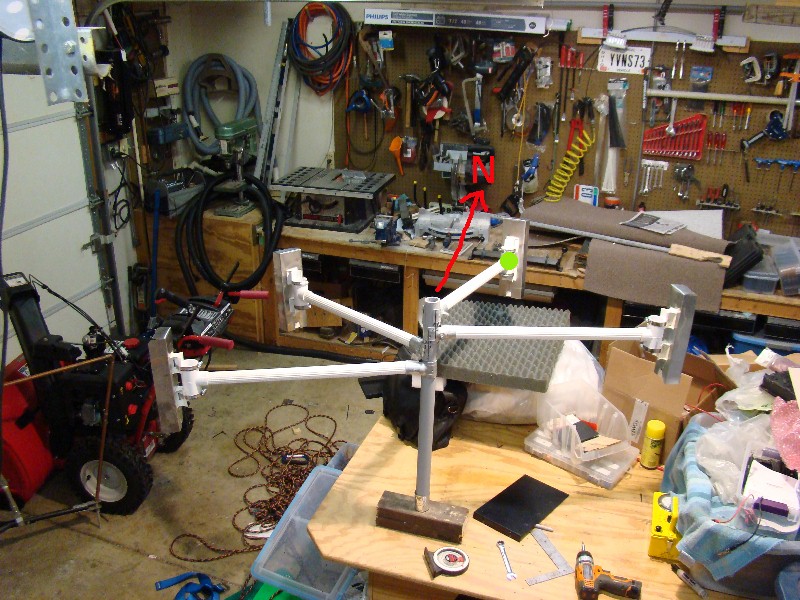

Setup in my shop before tower installation

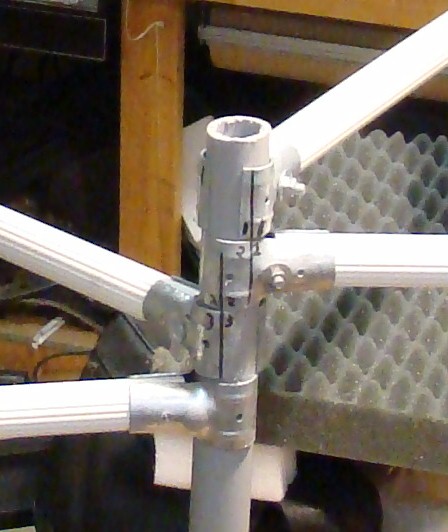

Mounting detail:

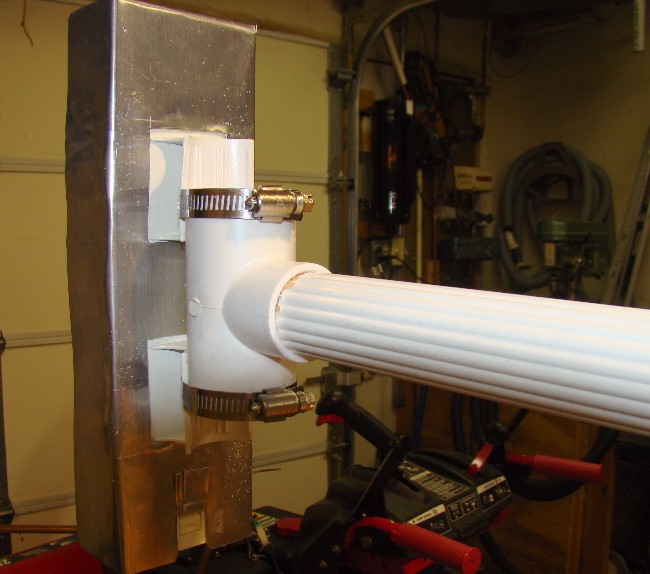

Due to the close distance to each other, RF shields were incorporated:

Template for shown shield:

Click Here

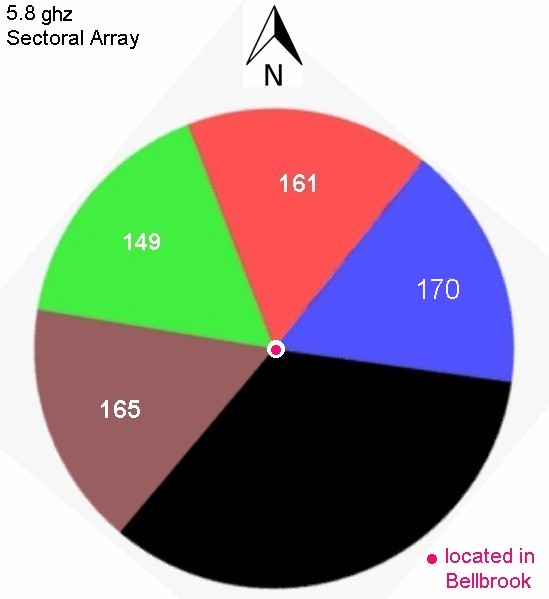

Projected coverage from Bellbrook with channel numbers:

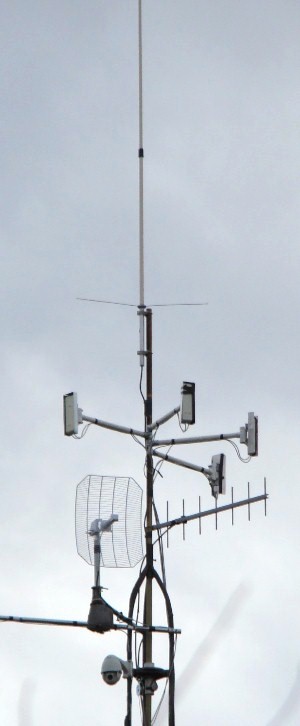

Installed:

This 5.8ghz array is ethernet cabled into my master ethernet switch... where my 2.4ghz Bellbrook node is also connected. Whatever the 5.8ghz sees, it gets retransmitted back out on 2.4... and vice versa. They are fully linked to each other.

To determine which of these NanoStations might be offering you the best signal, configure your 5.8ghz node to any channel number that is not shown (any 5.8 channel except for 149, 153, 161, 165). Then do a "Wifi Scan" from your node and compare the signal strengths shown. Pick the best one from this list:

149

170

161

165

... and reprogram your 5.8 to that channel.
