Timz Sectoral Array Info Page
NanoStation Shield Template
I get a lot of requests about the shields I made for my NanoStations, so I placed a template here.

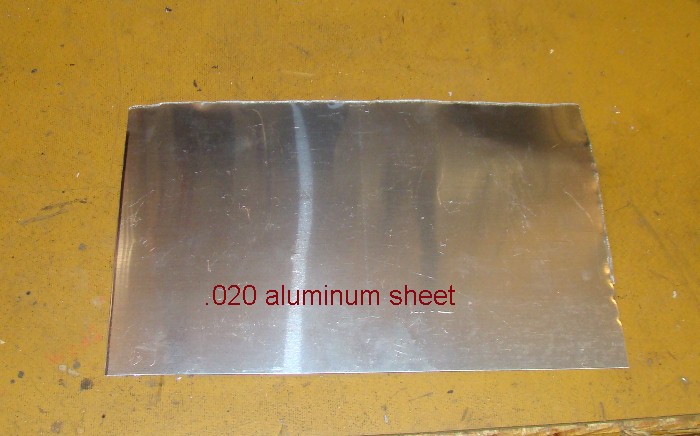

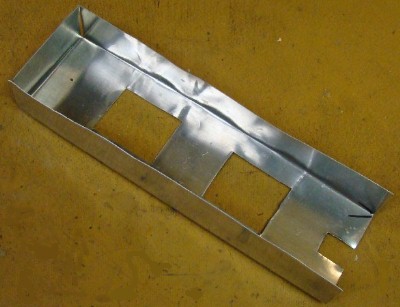

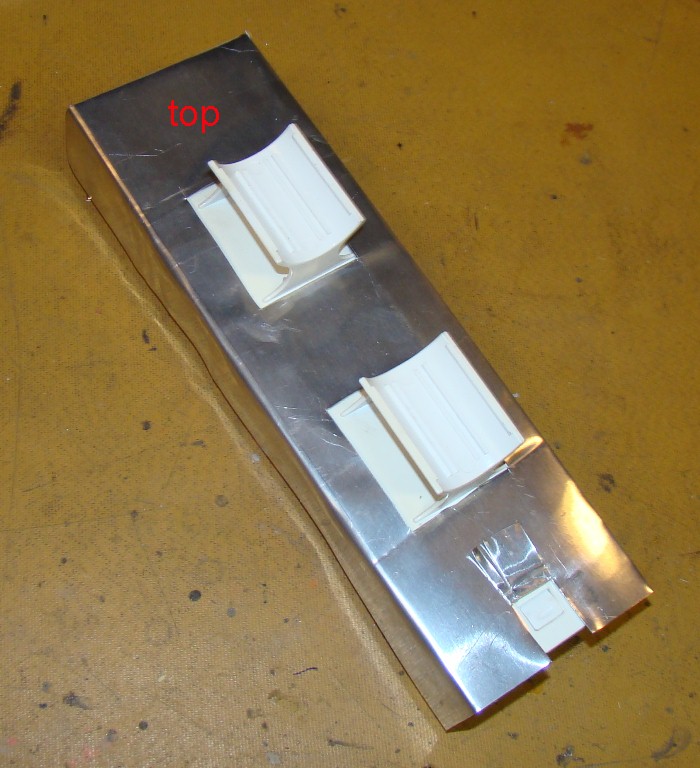

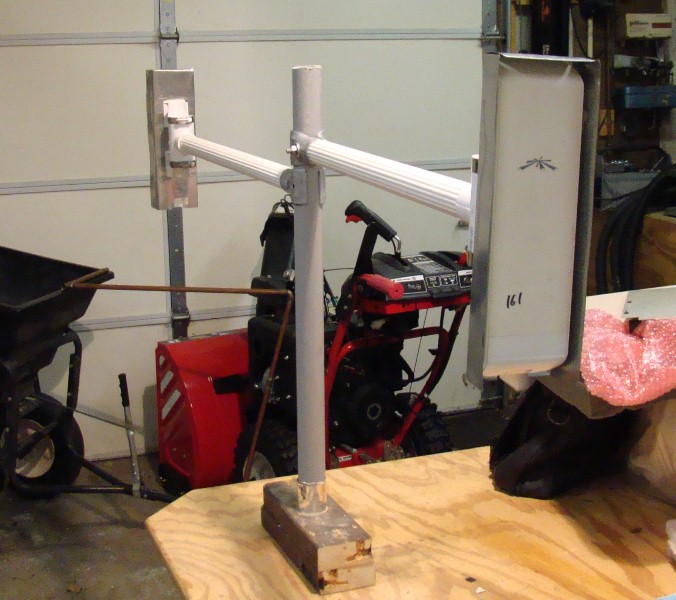

Pic of a Shield installed:
This is the first one I ever made. I since then bought a Harbor Freight "brake" and can now bend with nice straight creases.

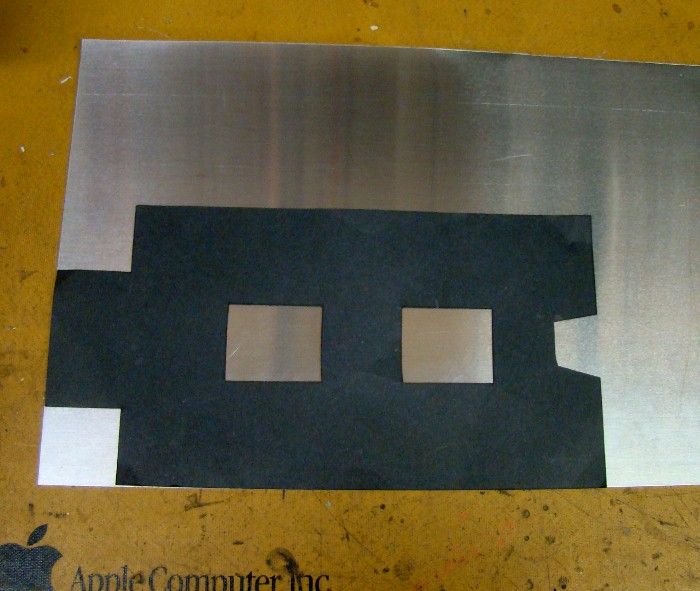

Layout:

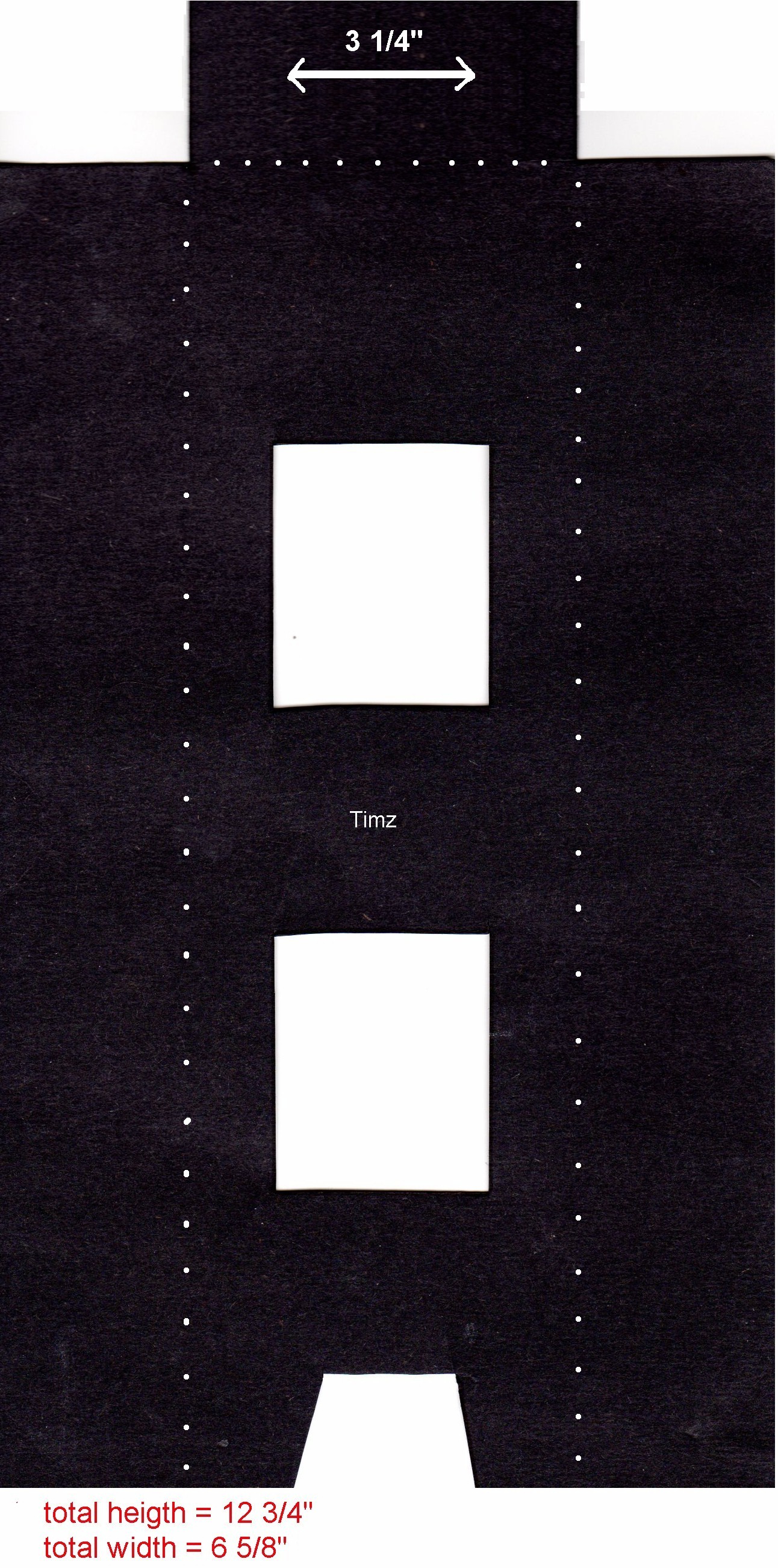

Download this file for the template:
* not for the LOCO version
* dimensions are on the printout:
NanoShield.jpg* dotted lines are fold/bend lines
* the overall width 6 5/8" is important
I attached using silicon (RTV), let sit overnight.
