S-Video Male End Pinouts
Ignore any pin numbers that may already appear on your cables; use above numbering.
Connect as follows:
|

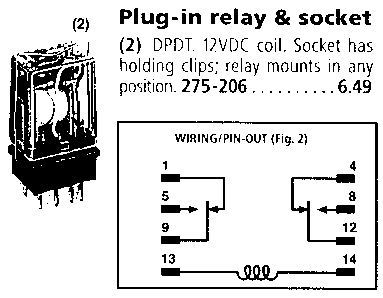

Relay pin 9 |
TV cable pin 2 |
|
Relay pin 12 |
TV cable pin 3 |
|
Relay pin 1 |
Source cable #1 pin 2 |
|
Relay pin 4 |
Source cable #1 pin 3 |
|
Relay pin 5 |
Source cable #2 pin 2 |
|
Relay pin 8 |
Source cable #2 pin 3 |
S-Video cable pins 1 and 4 are grounds.
Connect the grounds from all cables together.
Solder DC power cube wires to relay pins 13 and 14.
